UV LED Separation Curing Oven

Click：[770] Publish Time:2025-04-03

Pain Points of Traditional Curing vs. Innovative Breakthrough

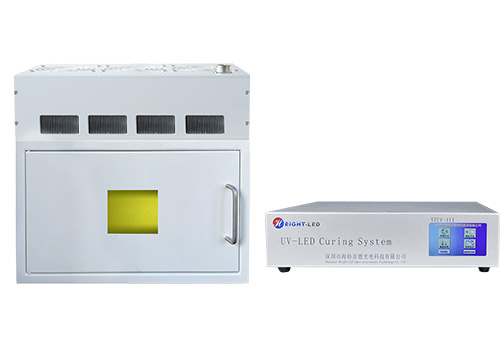

In industries such as electronics manufacturing, printing, packaging, and adhesive curing, traditional UV curing equipment often faces challenges like high energy consumption, thermal damage risks, and complex operation. The XYUV-4II-FS300200-NH UV LED separation curing oven redefines industrial curing efficiency and safety with its 365nm high-precision wavelength, 800mW/cm2 ultra-high light intensity, and intelligent control, empowering enterprises to reduce costs and enhance productivity.

Core Product Highlights

1. Intelligent Control, Flexible Adaptation to Production Needs

Dual Operation Modes
: Auto/Manual modes. Auto mode ensures timed curing with precision; manual mode offers flexible control for diverse processes.
Remote Connectivity
: RS485 Modbus-RTU protocol and external IO signal control enable seamless integration into automated production lines for remote parameter adjustment and monitoring.
Digital Dimming
: 1-100% stepless light intensity adjustment to meet varying material requirements and minimize energy waste.

2. Cold Light Source Technology, Breaking Thermal-Sensitive Material Limits

Low Thermal Radiation Design
: Equipped with UV LED chips from Seoul Semiconductor (South Korea), reducing infrared heat radiation by over 90%. Ideal for heat-sensitive materials like resins, films, and PCBs, eliminating deformation and stress damage.
Instant On/Off
: No preheating required, 0-second response time, boosting production line efficiency.

3. Extended Lifespan and Minimal Maintenance

≥20,000-Hour Lifespan
: Far exceeds traditional mercury lamps, reducing replacement frequency and long-term costs.
Smart Thermal Management
: Air cooling + delayed fan shutdown ensures stability and prolongs core component lifespan.

Four Key Advantages

Advantage	Description
Energy Efficiency	Photoelectric conversion rate >80%, power consumption ≤1.2kW, 50%+ energy savings vs. traditional systems
Eco-Friendly Safety	Mercury-free design, RoHS-compliant, zero-pollution emissions
Precision & Reliability	Door sensor function + dual timing modes (count-up/countdown) for operational safety and process consistency
Compact Design	Light source dimensions 466×350×392mm, optimized for compact production lines, 30% space efficiency improvement

Technical Specifications

Irradiation Area
: 300×200mm (suited for small/medium workpieces)
Wavelength/Intensity
: 365nm ±5nm | 800mW/cm2 (industry-leading)
Power/Consumption
: AC220V 50Hz | ≤1.2kW
Environmental Tolerance
: -10°C to 50°C, 25%-80% RH humidity

Application Scenarios

Electronics Manufacturing
: PCB curing, chip encapsulation
Printing & Packaging
: UV ink/glue rapid curing
Medical Devices
: Heat-sensitive material bonding, sterile packaging
Automotive Industry
: Headlight adhesive curing, precision component fixation

Service Commitment

1-Year Warranty
: Optional extended warranty for core components
Custom Solutions
: Tailored designs for optical path, size, power, etc.

The Future is Here, Upgrade to Smart Manufacturing

The XYUV-4II-FS300200-NH UV LED separation curing oven, with its intelligence, energy efficiency, and reliability, delivers solutions from standalone curing to fully automated production integration. Choose Height LED Technology to achieve precision-controlled processes and maximize your ROI!
